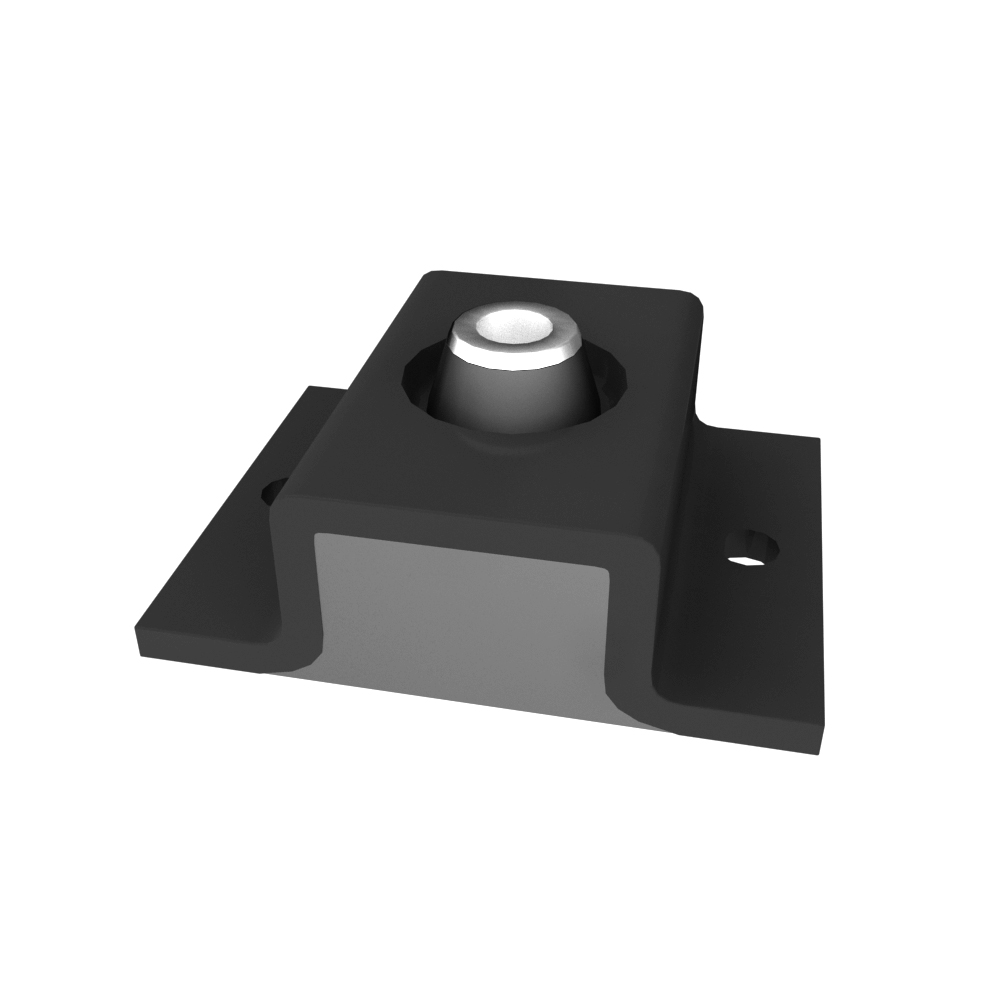

Shock absorbers without metal protector type AKSS

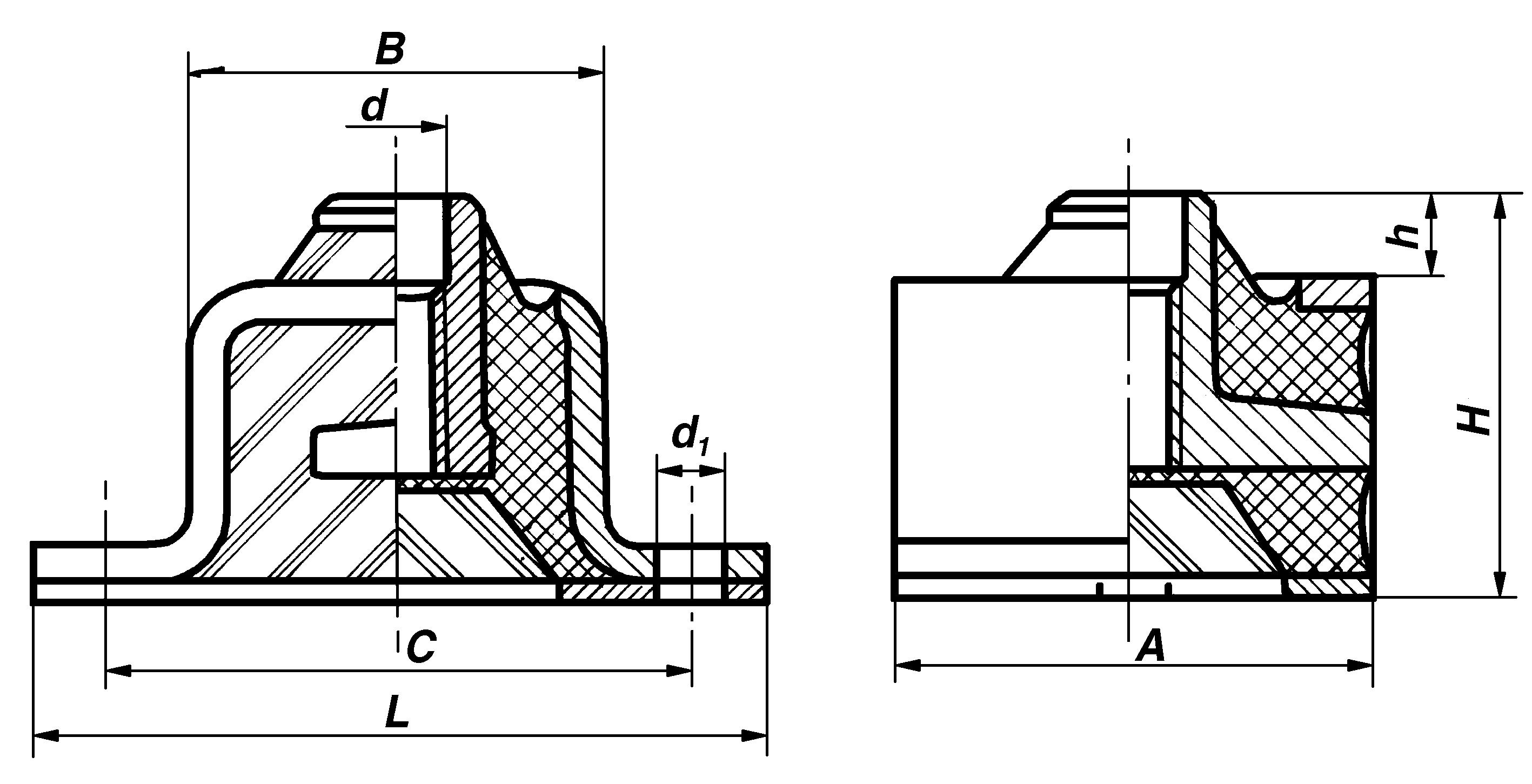

Shock absorber marking	AKSS-10	AKSS-15 AKSS-25	AKSS-40	AKSS-60	AKKS-85	AKSS-120
Vertical operating Load [kg]	do 10	10-15 15-25	25-40	40-60	60-85	85-120
A [mm]	35	40	55	65	70	85
B [mm]	40	40	48	56	76	80
C [mm]	54	54	68	80	100	112
H [mm]	40	40	46	50	60	65
L [mm]	70	70	85	100	120	140
d [mm]	M8	M8	M10	M12	M12	M16
d1 [mm]	7	7	9	9	11	13
~h [mm]	8	8	10	10	8	12

All our shock absorbers are made from oil resistant rubber.
